Model

Model:SEC051

Specification

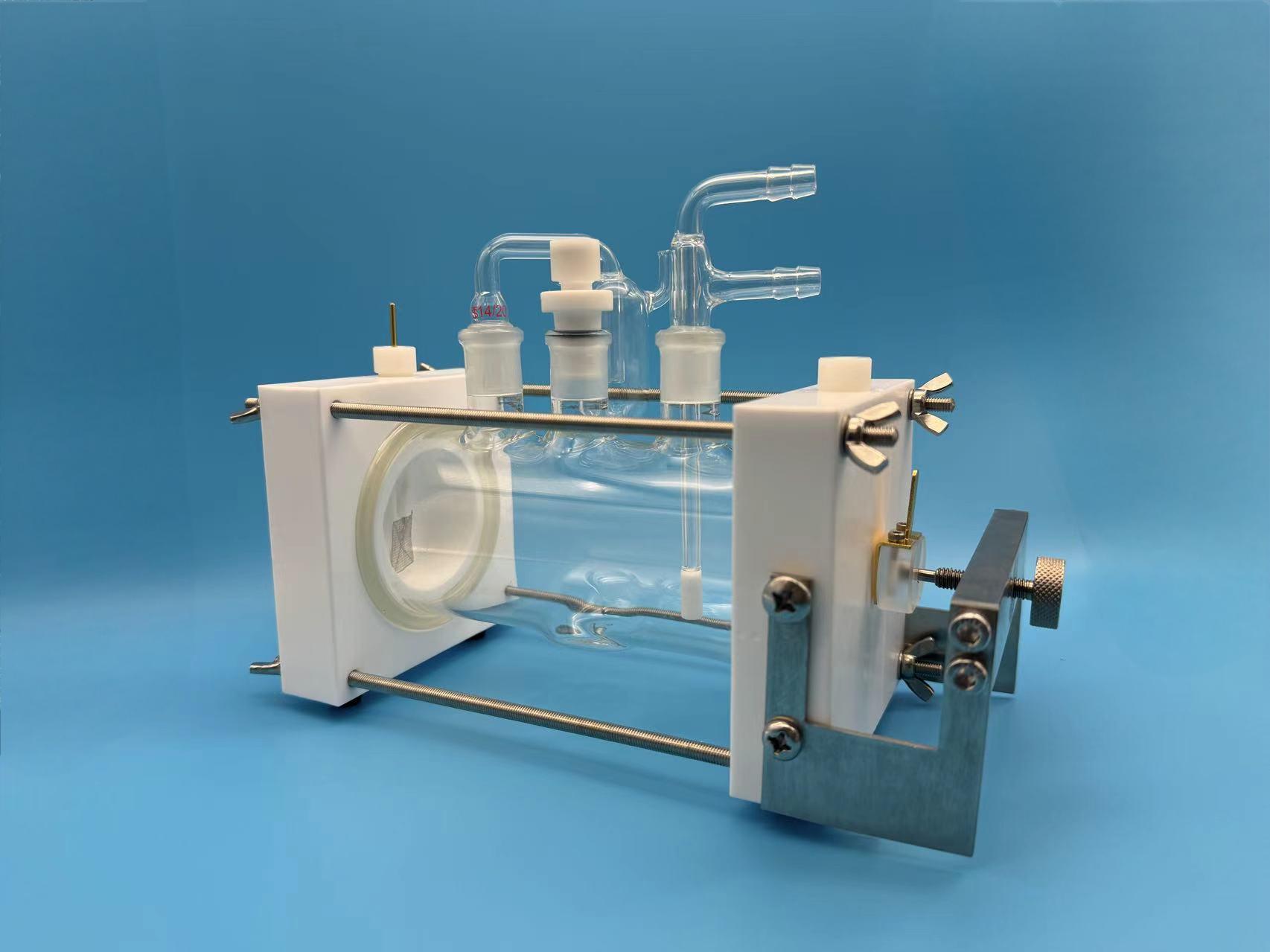

None-jacketed, single deck flat corrosion cell, suitable for flat plate specimen. The cell chamber bottom has an indentation design, this design is available for the user to place the magnetic stirrer on the flat cell bottom for magnetic stirring, for getting a better diffusion experimental performance.

Feature

The working area is 1cm²

The cell kit Includes:

u Flat corrosion cell *1

u Reference electrode:AgAgCl*1

u Count electrode: Platinum mesh 20*20mm*1

u Liquid seal part*1

u F type Intake-tube*1

u Luggin Capillary(salt bridge)*1

Capacity

250ml,500ml, 1000ml
