Model

Model:MEA-01

Specification

u The flow channel Specification: 10*10mm; 20*20mm; 5cm2; 30*30mm; 50*50mm, 50cm2 or other customized flow field size.

u Cell material: High-purity titanium, or High-purity nickel plate.

u Terminal material: Gold-plated Copper

Feature

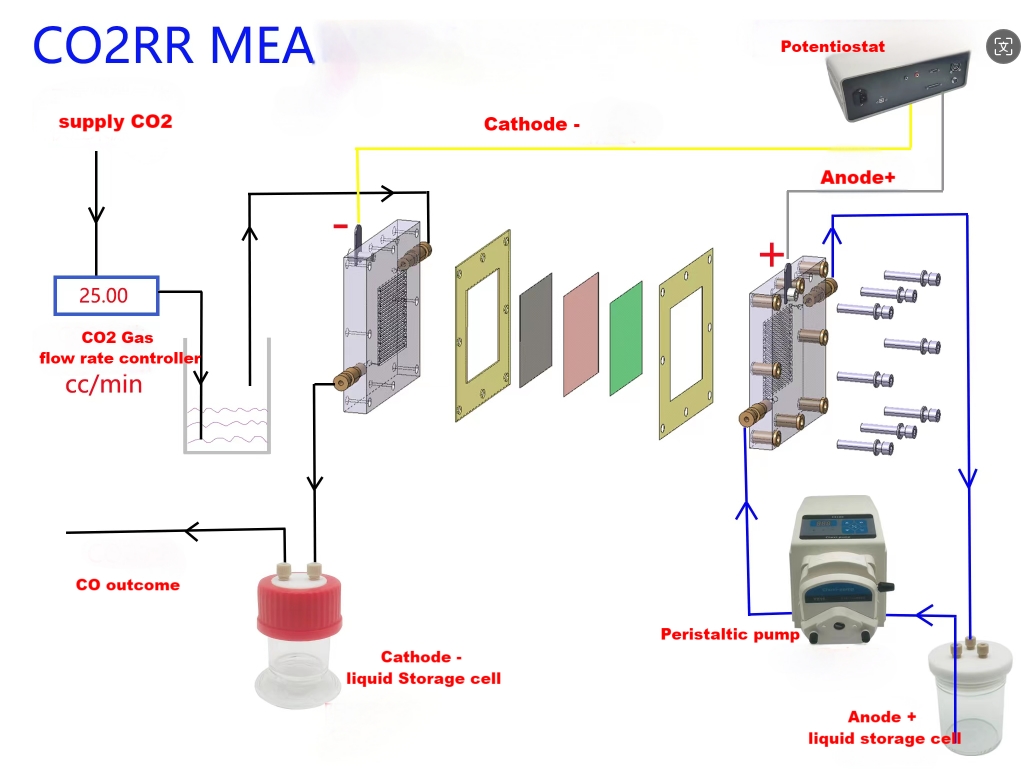

u This MEA cell is mainly used for research analysis of electrochemical carbon dioxide reduction(CO2RR), alkaline anion exchange membrane water electrolysis and electrochemical processes.

u The MEA cell body is equipped with dual O-ring sealing grooves, it has excellent sealing performance.

u The bipolar plate is equipped with heating and temperature measurement holes for electrochemical testing under temperature control conditions.

u The overall material of the membrane electrode assembly cell body is high-purity titanium, and the user also can choose high-purity nickel plates which can be used for electrochemical testing in special environments.

u The reactor can be designed with the type of serpentine, parallel or leaf vein channel, we support also other customized channel types such as spiral, mesh, comb, etc.
