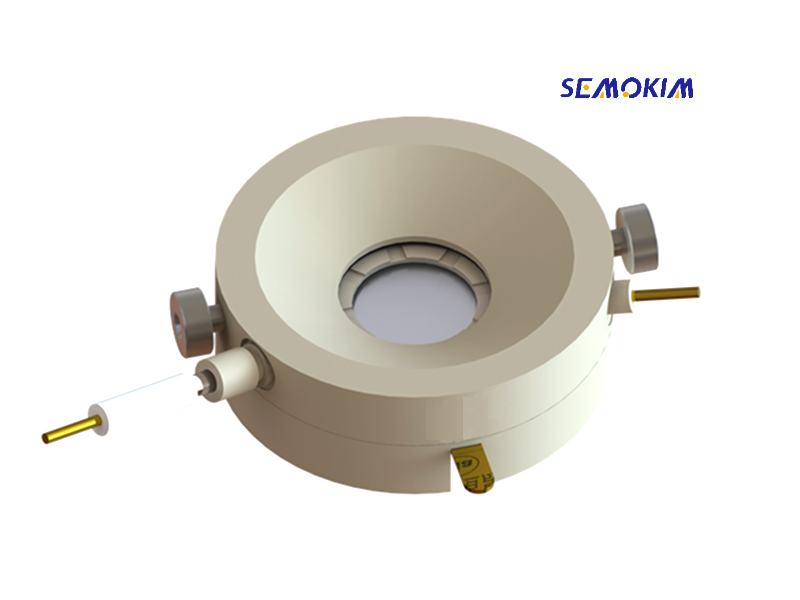

In-situ Raman Electrolytic Cell
In-situ Raman Electrochemical Cell | |
Model | SEC071 |
Material | u Cell PEEK + Window Quartz sheet u Sealing parts: fluororubber |
Specification | u External size: Ø70*24mm. Volume 6mL u Window path: Ø27mm, Quartz sheet thickness 1mm. u Suitable installation size: 25mm*25mm*(0 to 2.2mm thickness),effective reaction area Ø22mm. u The distance between working surface and Window bottom: 3mm |
Feature | A cell includes: u Platinum Wire counter electrode*1 u Ag/AgCl electrode*1 It suits Plate working electrode such as ITO, FTO glass or metal plate.etc. |
